Fanway berspesialisasi dalam memberikan layanan perakitan PCB ujung ke ujung yang efisien dan andal, secara tepat dirancang untuk persyaratan unik Anda untuk mempercepat kesuksesan produk Anda.
As a seasoned expert in Through-Hole Technology (THT) assembly with 12+ years of specialized experience, Fanway delivers mission-critical solutions for connectors, power modules, and ruggedized electronics requiring uncompromised mechanical stability. While surface-mount technology (SMT) dominates modern PCBAs, THT remains vital for applications demanding:
• Axial/radial lead component mounting
• High-power device interconnections
• MIL-SPEC compliant solder joints
Certified Excellence
◾ IPC-A-610 Class 2 & ISO 9001:2015 certified processes
◾ 100% automated optical inspection (AOI) post-soldering
◾ ≤0.2% defect rate across 50M+ annual THT connections

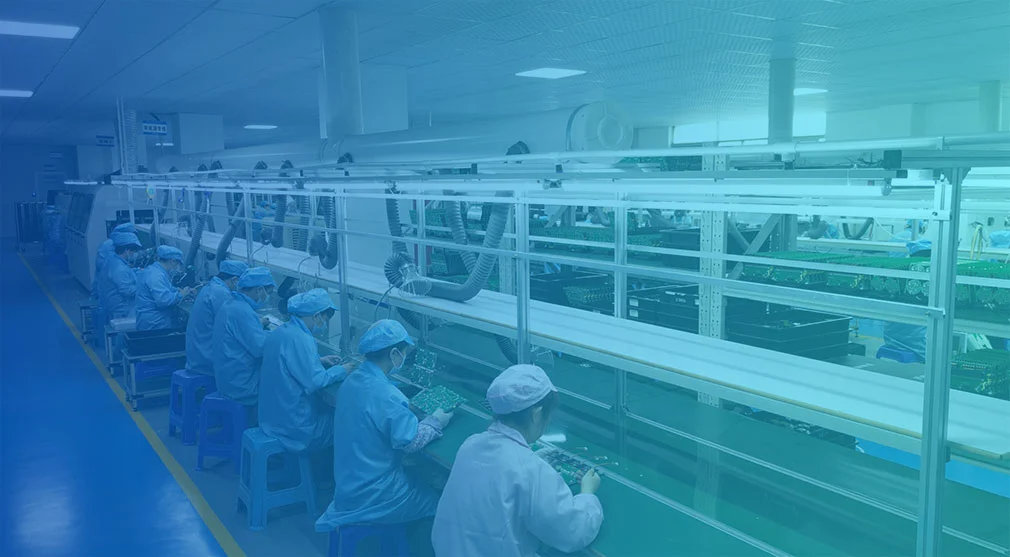

We bridge traditional craftsmanship with Industry 4.0 automation:
Skilled technicians handling:
• Odd-form components (transformers/relays)
• Through-hole rework/repair (<0.5mm pitch)
• Universal Instruments THT insertion systems
• 6-zone selective soldering with ±1.5°C thermal control
• 1200+ components/hour placement speed
| Component Types | Axial, radial, DIP, connectors, and more |
| Equipment | Advanced automated insertion machines, wave soldering systems, and manual soldering stations |
| Quality Control | Rigorous inspection processes, including AOI (Automated Optical Inspection), X-Ray, visual inspection and functional testing. |
| Flexible Solution | Support for both small-batch and high-volume orders, with quick turnaround times. |
| Cost Transparency | No NRE charges for standard THT assemblies <500 units |
| Mixed-Technology Mastery | Seamlessly integrate THT components with SMT assemblies using selective soldering and wave soldering systems (±0.1mm placement accuracy). |
| Large Component Handling | Accommodate oversized parts (up to 50mm height) and high-power devices with our servo-driven insertion systems and 10-zone nitrogen reflow ovens. |
| End-to-End Traceability | Full component lot tracking + solder profile monitoring compliant with ISO 13485 (medical) and IATF 16949 (automotive) standards. |
Q1: What is the lead time of THT PCB Assembly?
A1: 3-5 working days for prototype, 10-15+ working days for high volume orders. It depends on the order quantity and complexity.
Q2: Which is more suitable for my product: THT or SMT?
A2: It depends on your design, THT is more suitable for your product that require high reliability and mechanical strength. For compact and high-density designs, SMT is usually more suitable. Sometimes, combination both.
Q3: Do you support small-batch production?
A3: Yes, we specialize in small-batch production for prototyping and low-volume orders. Our flexible processes ensure high quality and quick turnaround times.
